Wiper MCR linear drain
Linear shower drains made for microcement and resin floors
Microcement and resin finishes are only a few millimetres thick, so the drain has to meet them exactly. The Wiper MCR is a stainless steel linear drain made for these thin finishes: its frame height adjusts to the thickness of your floor, a stainless steel collar takes the waterproofing, and a secondary drainage route clears moisture from beneath the surface.
Sold and delivered by Wetrooms Design. 30-day returns, trade discounts from £500.
- Finish thickness, with an adjustable frame
- From 3 mm
- Stainless steel drain body
- Grade 304
- Standard lengths, bespoke on request
- 500 to 1200 mm
- Guarantee with the Wiper waterproofing kit
- 25 years
The problem
Why microcement needs its own drain
Drains made for tiled floors expect a tile and a bed of adhesive on top of the waterproofing, which adds up to a much thicker build-up. Microcement and resin finishes are far thinner, so the drain has to be set to match them, or the frame ends up out of line with the finished floor.
The Wiper MCR is made for that job. Its frame height is adjusted to the thickness of your finish, so the drain sits flush with the floor. There is no tray to work around: the drain can go wherever the design needs it, and the fitter forms the falls in the screed.
The drain
What makes the Wiper MCR different
A stainless steel drain designed around thin floor finishes, supplied as a complete set.
-
Adjustable frame height
Set the frame to the thickness of your microcement or resin so the grate finishes flush with the floor.
-
Grade 304 stainless steel
The drain body is grade 304 stainless steel, in a brushed, polished or matt finish.
-
Collar for the waterproofing
A stainless steel collar around the drain gives the waterproofing and the supplied sealing membrane a surface to bond to.
-
Secondary drainage
Water that finds its way beneath the finish is led into the channel instead of sitting in the floor build-up.
-
Fillable or decorative grates
Choose a fillable grate that takes an insert of floor material, or one of five stainless steel patterns.
-
Cleaned from above
The grate lifts out with the supplied hook, so the trap can be cleaned from above.
Grates and finishes
Fill it, or make a feature of it
Every grate fits the same drain body, so you can choose purely on looks. Two are fillable: their recessed top takes an insert of floor material, leaving only a slim steel outline. All grates come in brushed, polished or matt stainless steel, with PVD colours in silver, black, brass and gold.
-
Pure Fillable
A recessed cover that takes an insert of floor material. Only a narrow steel edge stays visible.
-
Reversible Fillable
Double-sided. Use the recessed side with an insert, or turn it over for a plain stainless steel top.
-
Ponente
A plain, unbroken steel top for the most minimal look.
-

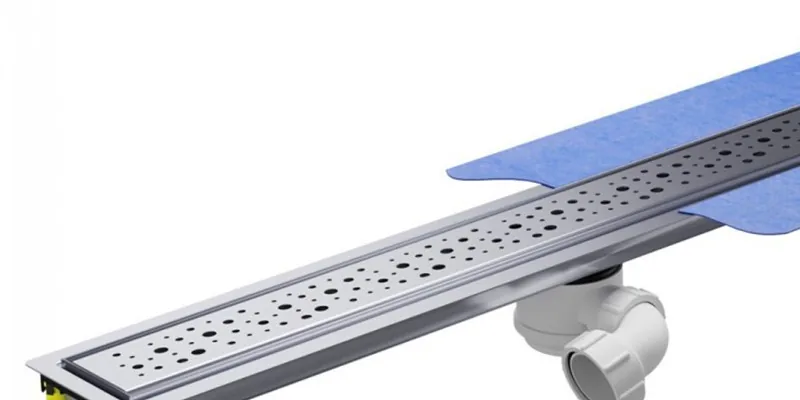

Mistral
Round perforations in mixed sizes.
-

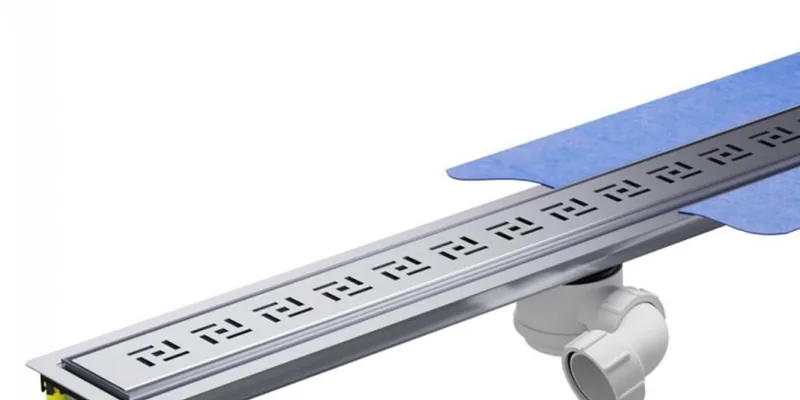

Tivano
A repeating Greek key cut-out.
-

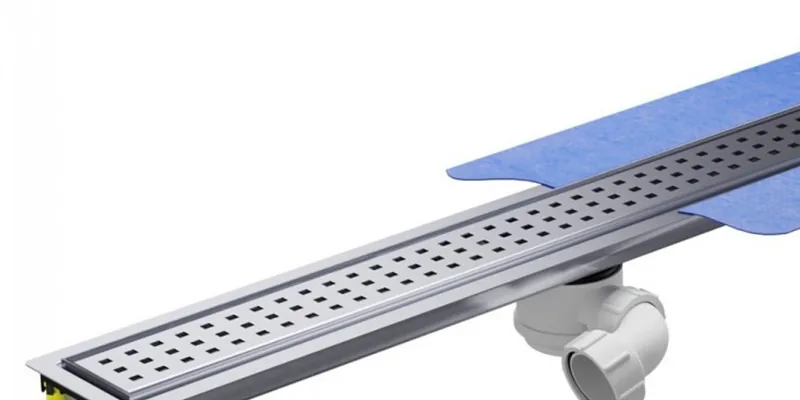

Sirocco
Square perforations along the full length.
-
Zonda
Angled slots along the full length.
Installation
How it goes in
The order of work, in outline. Full fitting instructions come with the drain: follow them, and the instructions for your microcement or resin system.
-
Plan the level
Mark the finished floor level and set the frame height to suit the thickness of your finish.
-
Fix and connect
Stand the drain on its adjustable legs, connect the waste trap and level the drain.
-
Screed and waterproof
Screed up to the drain, forming the falls towards the channel, then waterproof the floor, bonding the supplied sealing membrane to the drain's collar.
-
Lay the finish
Apply the microcement or resin up to the drain frame, then fit the grate.
Specifications
Sizes and waste traps
Standard lengths: 500, 600, 700, 800, 900, 1000, 1100 and 1200 mm. Bespoke lengths are made to order.
Choose the waste trap by the depth you have below the floor and the flow rate you need. The McAlpine HC26-50 comes as standard; the others can be chosen when you order.
| Waste trap | Height | Flow rate | Water seal | Good for |
|---|---|---|---|---|
| McAlpine HC26-50 (standard) | 68 mm | 26 l/min | 20 mm | Standard 1.5 inch UK waste, fully rotatable |
| H+M Drop 35 | 63 mm | 48 l/min | 35 mm | High flow at a low height |
| H+M Drop 50 | 78 mm | 48 l/min | 50 mm | Meets DIN EN 1253, deepest water seal |
| H+M Snake | 46 mm | 36 l/min | 25 mm | Lowest height, for shallow floors |
| H+M Snake 360 | 50 mm | 32 l/min | 25 mm | Low height, fully rotatable outlet |
| McAlpine Vertical V50 | 132 mm | 52 l/min | 25 mm | Vertical outlet, clears joists and pipework |
Trap figures from the manufacturers. The total installation height is the trap plus the drain body, so check it for your chosen set before ordering.
What you get
What comes in the set

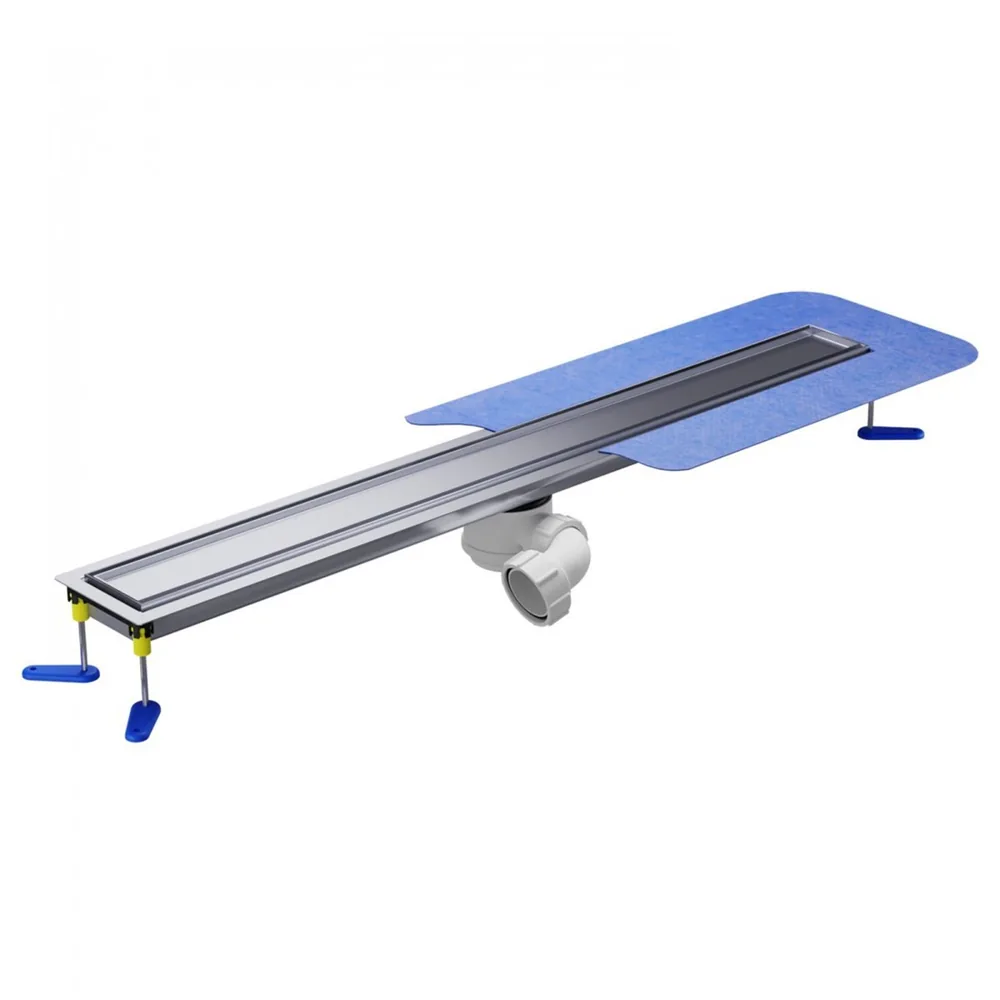

Each Wiper MCR is supplied as a complete drain set:
- stainless steel drain body with its collar
- your chosen grate, with a lifting hook
- height-adjustable support legs
- sealing membrane for the waterproofing joint
- your chosen waste trap
The Wiper waterproofing kit is sold separately. The drain carries a 10-year manufacturer's guarantee, extended to 25 years when it is bought together with the kit.
Applications
Where it works

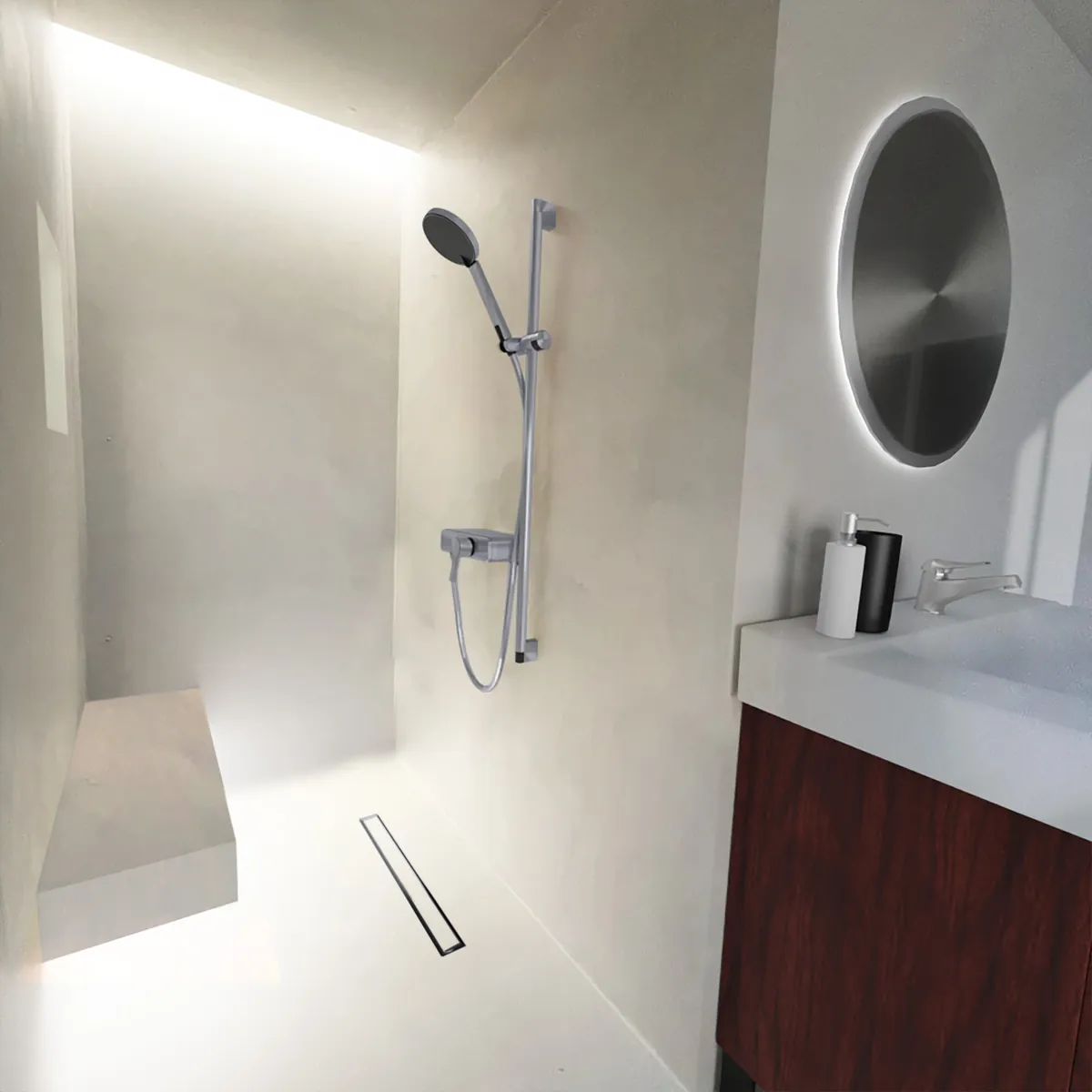

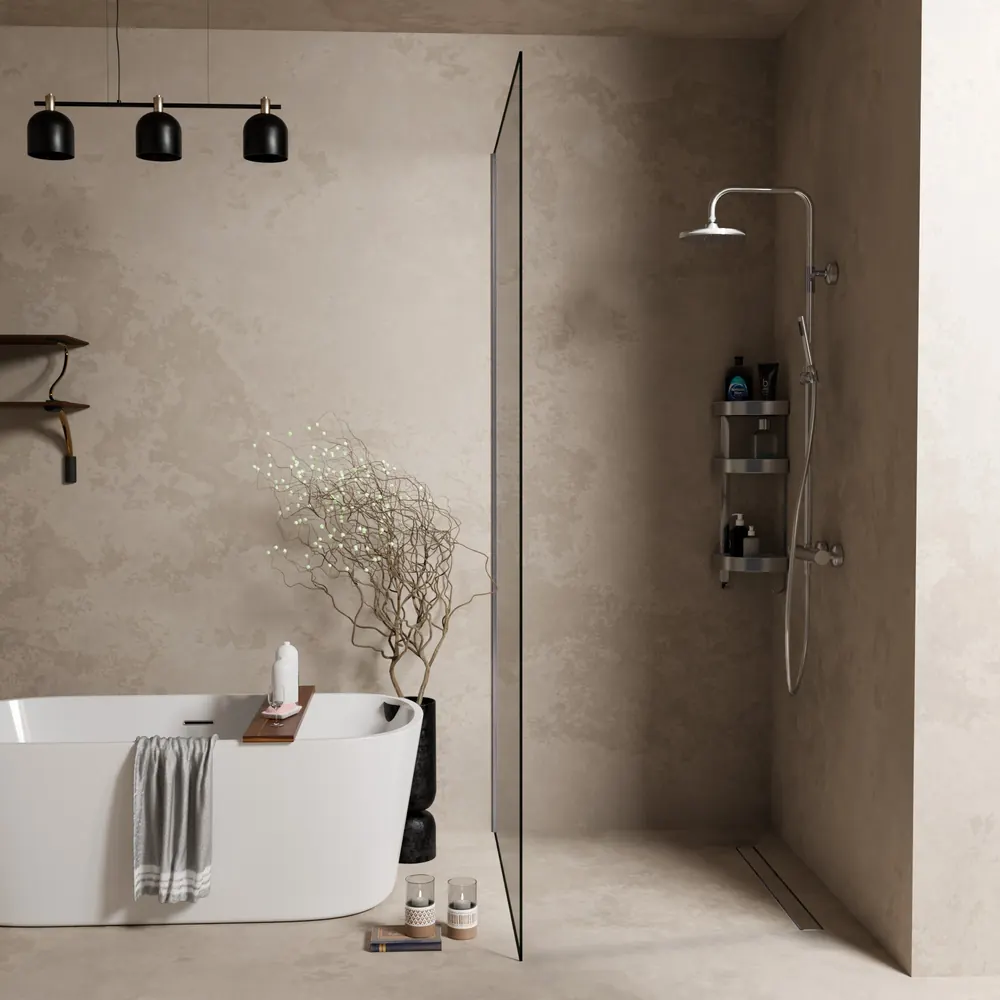

- Home wet rooms with microcement or resin floors, where the drain should almost disappear.
- Renovations, where a low waste trap such as the 46 mm H+M Snake helps in a shallow floor.

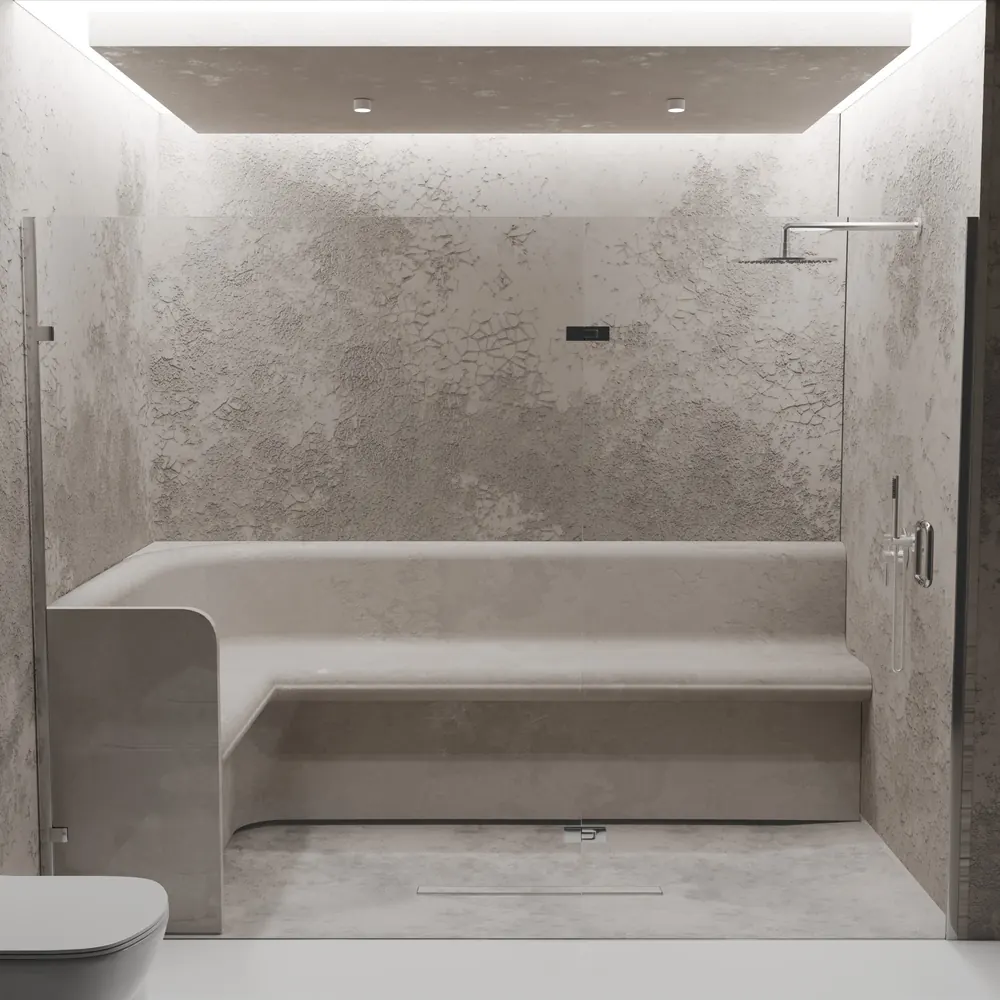

- Walk-in showers without a tray, with the drain placed wherever the design needs it.
- Designers and installers who want one drain for microcement, resin and polished concrete floors.
FAQ
Questions we get asked
Which floor finishes is the Wiper MCR for?
Microcement, resin, polished concrete and similar thin-layer finishes. It is designed for floors that are much thinner than a tiled build-up.
How thick can the floor finish be?
The frame height is adjustable to suit thin finishes from 3 mm. For the exact range for your floor build-up, call the technical team on 0800 368 9956.
Do I need a shower tray as well?
No. The Wiper MCR is a standalone drain and the fitter forms the falls in the screed. If you would rather have the falls built in, see the Resinbase trays for microcement, which come with an integrated drain.
What is the minimum installation depth?
It depends on the waste trap. The lowest option, the H+M Snake, is 46 mm high; add the drain body to get the total. The team can confirm the total height for your set.
How does the secondary drainage work?
Water that gets through the surface finish down to the waterproofing layer is led into the drain channel, so it does not stay trapped in the floor build-up.
Which grate gives the most seamless finish?
The Pure grate. Its recessed top takes an insert of floor material, so only a thin steel outline shows. The Reversible grate is fillable too, and can be turned over for a plain steel top.
Can I order a non-standard length?
Yes. Standard lengths run from 500 to 1200 mm, and bespoke lengths are made to order.
What guarantee does it have?
10 years from the manufacturer, extended to 25 years when the drain is bought with the Wiper waterproofing kit. Wetrooms Design also gives you 30 days to return it.
Are there trade discounts?
Yes. Trade discounts start at 5% on orders over £500 and rise with order value. See trade and wholesale discounts for how they apply.
